SCREWED/SOCKET
SCREWED/SOCKET

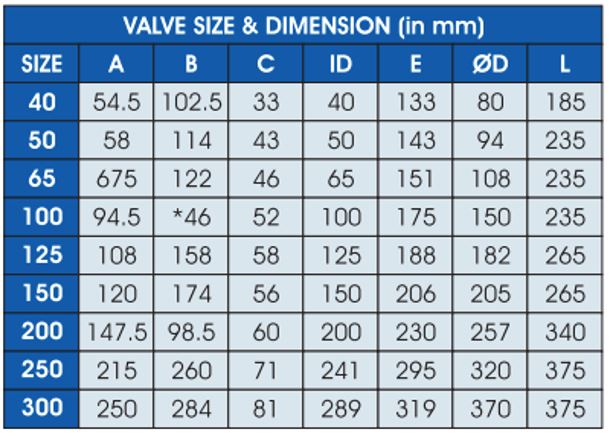

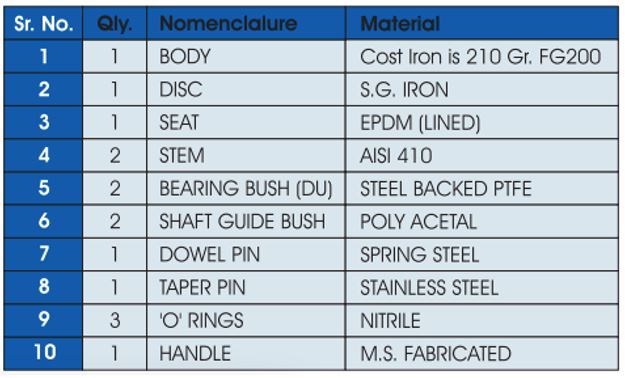

BUTTERFLY VALVE
SEVER / GEAR / PNEUMATIC / MOTORISED
TECHNICAL DATA:
- Manufacturing Standard: API 609
- End Connection: Wafer Type
- Inspection and Testing Standard: API 598
- Operating at 45°
HYDRAULIC TEST PRESSURE:
- Body: 15 kg/cm²
- Seat: 10 kg/cm²

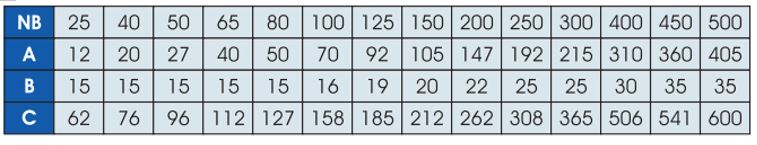

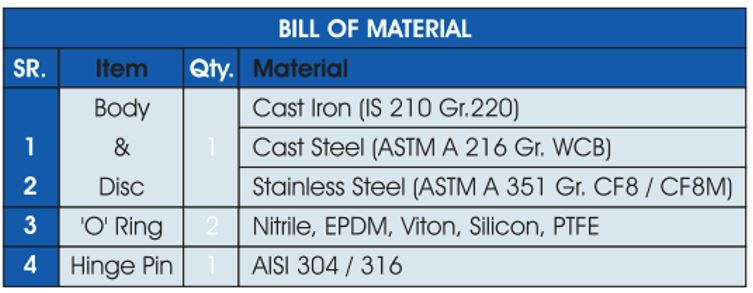

WAFER TYPE CHECK VALVE
Rajdeep Check Valve combines a short face-to-face dimension and low weight to guarantee a simple and space-saving installation between flanges. Designed for durability and reliable performance, it ensures smooth flow control and minimal maintenance.
